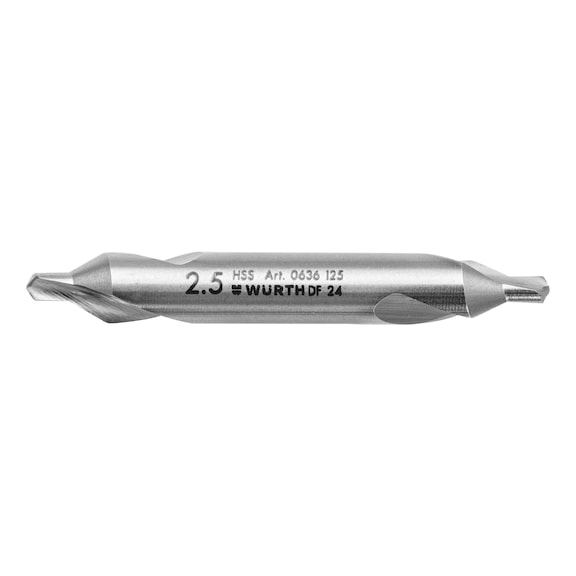

HSS centre drill bit
DRL-CENT-MET-DIN333-A-D2,5MM
Art.-no. 0636125
EAN 4045989353040
Register now and access more than 125,000 products
Shape A, right-hand cutting
- Without protection countersink
- With straight running surfaces
- Countersink angle 60°
- Ø tolerance on the shank: h9 in accordance with DIN 7160
Datasheets(X)
 | |
Material to be processed | Steel, Aluminium, Non-ferrous metal |
Standards | DIN 333 |
Form | A |
Countersink angle | 60 Degree |
Surface | Uncoated |
Cutting material | HSS |
Angle of the tip | 118 Degree |
Number of cutting edges | 2 PCS |
Diameter (d1) | 2.5 mm |
Shank style | Cylindrical |
Length (l1) | 45 mm |
Shank diameter (d2) | 6.3 mm |
Tolerance of cutting edge diameter | h8 |
Tolerance of shank diameter | h9 |
